THE SHARK-SEARCH ALGORITHM

AN APPLICATION: TAILORED WEB SITE MAPPING

Michael Hersovici1, Michal Jacovi1
Yoelle S. Maarek1, Dan Pelleg2
Menachem Shtalhaim1, Sigalit Ur1

1IBM Haifa Research Laboratory
MATAM, Haifa 31905, ISRAEL
contact email: yoelle@haifa.vnet.ibm.com
2Dept of Computer Science
Technion, Haifa, ISRAEL

Abstract

This paper introduces the "shark search" algorithm, a refined version of one of the first dynamic Web search algorithms, the "fish search". The shark-search has been embodied into a dynamic Web site mapping that enables users to tailor Web maps to their interests. Preliminary experiments show significant improvements over the original fish-search algorithm.

Keywords: dynamic search, site mapping, resource discovery

1. Introduction and Motivation

Web search services typically use a previously built index that is actually stored on the search service server(s). This approach is pretty efficient for searching large parts of the Web, but it is basically static. The actual search is performed on the server on all the data stored in the index. Results are not guaranteed to be valid at the time the query is issued (note that many search sites may take up to one month for refreshing their index on the full Web). In contrast, dynamic search actually fetches the data at the time the query is issued. While it does not scale up, dynamic search guarantees valid results, and is preferable to static search for discovering information in small and dynamic sub-Webs.

One of the first dynamic search heuristics was the "fish search" [De Bra et al. 94], that capitalizes on the intuition that relevant documents often have relevant neighbors. Thus, it searches deeper under documents that have been found to be relevant to the search query, and stops searching in "dry" areas. However, the fish-search algorithm presents some limitations. Under time limit constraints, it does not discover "enough" relevant search directions. In this paper, we propose an improved and more "aggressive" version of that algorithm, that we call the "shark search" algorithm. The shark-search algorithm overcomes the limitations of its ancestor, by better estimating the relevance of neighboring pages, even before they are accessed and analyzed.

We have embodied the shark-search algorithm into Mapuccino (previously known as WebCutter), a system for dynamically generating Web maps tailored to the user's interests, that was described at the previous WWW6 conference  [Maarek et al. 97] and that is provided as a free service to Web users at the  Mapuccino home page.

Section 2 briefly reviews related work and describes in detail the fish-search algorithm and its limitations.  Section 3 introduces the shark-search algorithm.  Section 4 describes the Mapuccino system, a system for dynamic site mapping, in which the shark-search was embodied.  Section 5 shows some experimental results obtained with Mapuccino when using these search heuristics and in particular shows the improvements achieved by the shark-search algorithm over the fish-search algorithm.  Section 6 summarizes the contributions of this paper. Note that while the shark-search algorithm has been implemented in and for the Mapuccino system, i.e., for tailorable site mapping, it can in principle be used in other dynamic search systems.

2. The Fish-Search Algorithm

A typical example of dynamic search is  WebGlimpse [Manber et al. 97] that allows users to dynamically search sub-areas of the Web predefined by a given "hop" parameter (i.e. depth in the Web viewed as a graph). The fish-search [De Bra et al. 94] proposes a more refined paradigm that can be explained by the following metaphor. It compares search agents exploring the Web to a school of fish in the sea. When food (relevant information) is found, fish (search agents) reproduce and continue looking for food, in the absence of food (no relevant information) or when the water is polluted (poor bandwidth), they die.
The key principle of the algorithm is the following: it takes as input a seed URL and a search query, and dynamically builds a priority list (initialized to the seed URL) of the next URLs (hereafter called nodes) to be explored. At each step the first node is popped from the list and processed. As each document's text becomes available, it is analyzed by a scoring component evaluating whether it is relevant or irrelevant to the search query (1-0 value) and, based on that score, a heuristic decides whether to pursue the exploration in that direction or not: Whenever a document source is fetched, it is scanned for links. The nodes pointed to by these links (denoted "children") are each assigned a depth value. If the parent is relevant, the depth of the children is set to some predefined value. Otherwise, the depth of the children is set to be one less than the depth of the parent. When the depth reaches zero, the direction is dropped and none of its children is inserted into the list.

Children whose depth is greater than 0 are inserted in the priority list according to the following heuristics:

  1. the first  a * width  children (with  a  a predefined constant greater than  1) of a relevant node are added to the head of the list
  2. the first  width  children of an irrelevant node are added to the list right after the last child of a relevant node
  3. the rest of the children are added to the tail (to be handled only if time permits)
Note that this is equivalent to affecting to each child what we term a "potential score" set to  1  in case 1 above, to  0.5  in case 2, and to  0  in case 3, and inserting the child at the right location in the priority list sorted by that potential score. To facilitate the comparison with the shark-search algorithm described later, we use this equivalent representation in the following.  Figure 1 is a description of the fish-search algorithm (in a simplified form, omitting some optimization details for the sake of the generality).

  • Get as Input parameters, the initial node, the width  (width), depth  (D)  and size  (S)  of the desired graph to be explored, the time limit, and a search query
  • Set the depth of the initial node as  depth =  D, and Insert it into an empty list
  • While the list is not empty, and the number of processed nodes is less than S, and the time limit is not reached
    1. Pop the first node from the list and make it the current node
    2. Compute the relevance of the current node
    3. If  depth  >  0:
      1. If  current_node  is irrelevant
        Then
        • For each child,  child_node, of the first  width children of  current_node
          • Set  potential_score(child_node)  =  0.5
        • For each child,  child_node, of the rest of the children of  current_node
          • Set  potential_score(child_node)  =  0
        Else
        • For each child,  child_node, of the first  (a * width)  children of  current_node
          (where  a  is a pre-defined constant typically set to 1.5)
          • Set  potential_score(child_node)  =  1
        • For each child,  child_node, of the rest of the children of  current_node
          • Set  potential_score(child_node)  =  0
      2. For each child,  child_node, of  current_node,
        • If  child_node  already exists in the priority list,
          Then
          1. Compute the maximum between the existing score in the list to the newly computed potential score
          2. Replace the existing score in the list by that maximum
          3. Move  child_node  to its correct location in the sorted list if necessary
          Else Insert  child_node  at its right location in the sorted list according to its  potential_score  value
      3. For each child,  child_node, of  current_node,
        • Compute its depth,  depth(child_node), as follows:
          1. If  current_node  is relevant,
            Then Set depth(child_node)  =  D
            Else  depth(child_node)  =  depth(current_node) - 1
          2. If  child_node  already exists in the priority list
            Then
            1. Compute the maximum between the existing depth in the list to the newly computed depth
            2. Replace the existing depth in the list by that maximum.
  • EndWhile
Figure 1: The Fish-Search Algorithm

The fish-search algorithm, while being attractive because of the simplicity of its paradigm, and its dynamic nature, presents some limitations.

First, it assigns a relevance score in a discrete manner (1  for relevant,  0  or  0.5  for irrelevant) using primitive string- or regular-expression match. More generally, the key problem of the fish-search algorithm is the very low differentiation of the priority of pages in the list. When many documents have the same priority, and the crawler is restricted to a fairly short time, arbitrary pruning occurs - the crawler devotes its time to the documents at the head of the list. Documents which are further along the list whose scores may be identical to some further along may be more relevant to the query. In addition, cutting down the number of addressed children by using the  width  parameter is arbitrary, and may result in loosing valuable information. Clearly, the main issue that needs to be addressed is a finer grained scoring capability. This is problematic because it is difficult to assign a more precise potential score to documents which have not yet been fetched.

3. The Shark-Search Algorithm

We propose several improvements to the original fish-search algorithm in order to overcome these limitations. They result in a new algorithm, called the "shark search" algorithm, that while using the same simple metaphor, leads to the discovery of more relevant information in the same exploration time.

One immediate improvement is to use, instead of the binary (relevant/irrelevant) evaluation of document relevance, what we will call hereafter a  similarity engine  in order to evaluate the relevance of documents to a given query. Such an engine analyzes two documents dynamically and returns a "fuzzy" score, i.e., a score  between 0  and  1  (0  for no similarity whatsoever,  1  for perfect "conceptual" match) rather than a binary value. A straightforward method for building such an engine is to apply the usual vector space model  [Salton & McGill 83]. It has been shown that these kinds of techniques give better results than simple string- or regular-expression matching  [Salton 89, p306]. The similarity algorithm can be seen as orthogonal to the fish-search algorithm. We will assume in the rest of the paper that such an engine is available and that for any pair query, document,  (q,d), it returns a similarity score  sim(q,d) between  0  and  1.

This first improvement has a direct impact on the priority list. We use a "fuzzy" relevance score, giving the child an  inherited score, thus preferring the children of a node that has a better score. This information can be propagated down the descendants chain, thus boosting the importance of the grandchildren of a relevant node over the grandchildren of an irrelevant node. The children of an irrelevant node use their parent's inherited score for calculating their own inherited score - by multiplying it by some decay factor  d, whose role is comparable to Marchiori's "fading" factor  [Marchiori 97]. Thus, suppose documents X and Y were analyzed and that X has higher score. Suppose further that the children of both X and Y have a null score, and the algorithm now has to select the most promising of their grandchildren. Since both their scores are multiplied by  d 2, the shark search chooses X's grandchildren first (which seems intuitively correct). Stepping further away from X, into the great-grandchildren zone, would bring Y's descendants back into consideration, given an appropriate selection of  d. This continuous valued behavior of score inheritance is much more natural than the Boolean approach of the fish-search.

A more significant improvement consists of refining the calculation of the potential score of the children not only by propagating ancestral relevance scores deeper down the hierarchy, but also by making use of the meta-information contained in the links to documents. We propose to use the hints that appear in the parent document, regarding a child. The anchor text of the link is the author's way to hint as to the subject of the linked document. A surfer on the Web, encountering a page with a large amount of links, will use the anchor text of the links in order to decide how to proceed. Some automated tools (see  [Iwazume et al. 96]) also take advantage of that information. This approach however can fail in poorly styled HTML documents, in which anchor texts consist only of "click here" or "jump there", or when the anchor information is a picture without ALT information.
To remedy this problem we suggest using the close textual context of the link, and combining the information extracted from it with the information extracted from the anchor text. To reduce the risk of mistakenly giving a high potential score to a node due to a textual context that actually belongs to another node linked in the same paragraph (context boundaries are difficult to identify), we suggest a small fix. If a node has a relevant anchor text, the score of the textual context is set to the maximum (value of 1), thus giving it an edge over neighboring links. We claim that a policy that selects the children with the most promising anchor and anchor context information is preferable to arbitrarily selecting the  first set of children.

These heuristics are so effective in increasing the differentiation of the scores of the documents on the priority list, that they make the use of the width parameter redundant - there is no need to arbitrarily prune the tree. Therefore, no mention is made of the  width  parameter in the shark-search algorithm that is more formally described in Figure 2 (note that only the delta from the fish-search algorithm is given).

In the fish-search algorithm, replace step 3.1, for computing the child's potential score, with the following:
  1. Compute the inherited score of  child_node,  inherited_score(child_node), as follows:
    • If  relevance(current_node)  >  0  (the current node is relevant)
      Then  inherited_score(child_node)  =  d  * sim(q,current_node)
      where  d  is a predefined decay factor.
      Else  inherited_score(child_node)  =  d  * inherited_score(current_node)
  2. Let  anchor_text  be the textual contents of the anchor pointing to  child_node, and  anchor_text_context, the textual context of the anchor (up to given predefined boundaries)
  3. Compute the relevance score of the anchor text as  anchor_score  =  sim(q,anchor_text)
  4. Compute the relevance score of the anchor textual context as follows:
    • If  anchor_score  >  0,
      Then  anchor_context_score  =  1
      Else  anchor_context_score  =  sim(q,anchor_text_context)
  5. Compute the score of the anchor, that we denote  neighborhood_score  as follows:
    neighborhood_score  =  b  * anchor_score + (1-b) * anchor_context_score
    where  b  is a predefined constant
  6. Compute the potential score of the child as
    potential_score(child_node)  =  g  * inherited_score(child_node) + (1-g) * neighborhood_score(child_node)
    where  g  is a predefined constant.
Figure 2: The Shark-Search Algorithm

4. One Embodiment of the Shark-Search Algorithm: Mapuccino

Mapuccino (previously known as WebCutter  [Maarek et al. 97]) is a tool for dynamically generating site maps tailored to the user's interests (expressed in free text). The basic principle behind Mapuccino's approach is the following: Typical site mapping tools start from a seed URL, and crawl the neighboring Web space breadth first until either a certain time has elapsed, a given number of nodes or given depth and width upper bounds are reached. In contrast, by integrating search heuristics such as the fish- or shark-search algorithms in the crawling process so as to go more deeply in directions where relevant information was found, we allow users to generate maps tailored to their interests.

Tailored maps have "longer arms" in relevant directions. They display not only pages actually relevant to the topic of interest (highlighted in blue, shaded lighter or darker according to the relevance in Figure 3) but also their immediate neighborhood (not highlighted, i.e., colored in white) so as to show relevant information in context.

In a typical scenario, the user accesses a Mapuccino server via his/her Web browser, specifies what site (or seed URL) s/he wishes to map, how long s/he is ready to wait, and more importantly what topics s/he is more interested in. The server then works in three steps:

  1. It crawls the site going more deeply in directions where relevant information is found
  2. It identifies a graph of Web pages
  3. It returns the graph back to the user when the allocated time has expired, together with a Java applet that visualizes the map on the user's browser (other alternate views, besides the circle-view shown here, are provided via button click on the toolbar).

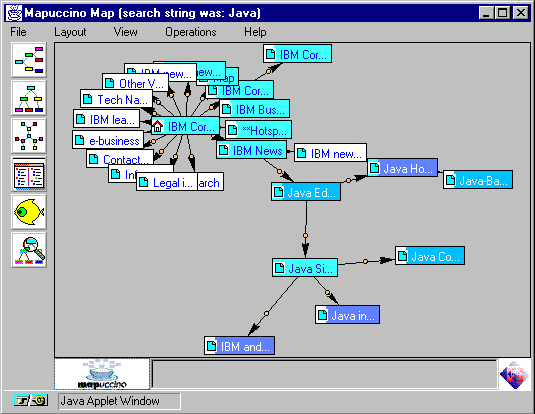

Figure 3: Tailored Map in "circle" view

The pages relevant to the user's interests are shown in context together with pages that might not be relevant but are hyperlinked to them. Thus, if a user generated a map tailored to the topic "Java", s/he may see a highlighted page about "Java education", which itself is related to some pages dealing with education on the object-oriented paradigm. While the latter pages are not directly related to the original user's query, and thus are not highlighted in the map, they can still present some interest. The context as defined by the Web authors thus brings additional information.

Note that the purpose of this tool is not to simply search for information in a site, but rather to generate a global view of a Web area where the user knows that relevant information can be found. In other terms, the prime intention of the user is to browse rather than to search.

The Mapuccino system has been fully implemented, and comprises two main components:

  1. A server that consists of a dedicated crawler that implements the shark-search algorithm in order to generate maps. The server comes as a DLL implemented in C, currently running on 3 platforms: AIX 4.1, Solaris 2.4, NT 4.0, provided as an add-on to a regular HTTP server together with a set of CGI scripts. We are in the process of porting the server to Java so as to provide it as a servlet.
  2. A Java applet that visualizes the map, viewable by any regular Java-enabled browser. While the Java applet uses some innovative techniques for layout and visualization of maps, the applet is not described here as it is not related to the shark-search algorithm. See  [Maarek et al., 97] for details.
In order to improve the performance of the server in terms of communication, in our implementation of the algorithm we used multiple communication channels (sockets) as opposed to the original fish-search algorithm implementation that only used one communication channel. Using multiple sockets significantly improved the performance of the server. From empirical tests made against a single HTTP server, we found that using 5 sockets resulted in the best overall transfer rate. The server is highly configurable, and works with most classical HTTP servers. It respects the Robots Exclusion Protocol, the de facto standard for limiting Web spiders access within sites. Maps up to a size of 30,000 nodes were successfully generated by the server (required time depending on the bandwidth at the time of execution).

5. Experimental Results

5.1 Evaluation measure

In order to evaluate the effectiveness of the shark-search algorithm as compared to the original fish-search, we first thought of using the traditional information retrieval criteria for evaluating retrieval effectiveness of search engines, namely  recall and  precision. Recall is defined as the ratio of the number of relevant retrieved documents to the total number of existing relevant documents. Precision is the ratio of the number of relevant retrieved documents to the total number of retrieved documents. However, in our context of application, i.e. tailored site mapping, recall and precision do not seem to be adequate measures. Indeed, recall cannot be evaluated on large portions of the Web, because it would be too difficult to build a standard "test site" (by analogy with "test collection") with enough coverage to evaluate the quality of results. Precision is not a good indicator either since at the page level, the algorithm relies on the similarity engine to evaluate relevance, while at the map level, standard GUI artifacts can make irrelevant pages disappear upon request.

To simplify the evaluation, we therefore propose to use a measure that reflects what most users expect from a "good" map: namely, getting as many relevant documents in the shortest delays.
We define this measure as the sum of similarity scores of all documents forming the maps, which we will refer to as the  "sum of information" measure in the rest of this paper. Note that we do not use an average measure (for instance dividing the sum by the total number of nodes in the map) since irrelevant documents that were identified in the same process do not hurt the quality of the map. On the contrary, they give context information and can be pruned from the map if so desired.

So in summary, if we define as  sim(d,q), the similarity score (between  0  and  1) between any document d in the map and query q directing the mapping, and M the set of documents in a given map, we have

sum_of_information(M,q) =  S(d in M) sim(d,q)

Note that  sim(d,q)  is the actual similarity score as computed by the similarity engine for documents whose contents was fetched by the crawler. Potential scores, which are speculative, do not affect this value.

5.2 Selection of Parameters

The shark-search algorithm makes use of 3 predefined parameters,  b,  g  and  d  (see Figure 2). We tried to find a combination of the parameters which maximizes the expected score of a search set. Several experiments were made, using different search queries and starting from different URLs. The "depth" value was always set to  3. The time-out period ranged from one to five minutes, but was fixed for the same test case. The number of documents to be scanned was chosen such that the time-out constraint will be the one stopping the algorithm. Several combinations of values for  b,  g  and  d  were tried, with 10 to 18 combinations for each experiment.

Coming to include fish-search as a control group in the comparison tests with the shark-search algorithm, we decided to slightly refine the tested fish-search component by using the same retrieval engine as for the shark-search component so as not to bias the experiments and unfairly penalize the fish-search algorithm.

Throughout the experiments, the shark-search runs obtained significantly higher  sum-of-information  values than the fish-search algorithm. In average, the best results were obtained at  d  =  0.5,  b  =  0.8  and  g  =  0, as the results were systematically in the top three  sum-of-information  values (note that it happened that the maximum was reached a few times at  g  =  1, and once at  g  = 0.5).

5.3 Some Examples

Table 1 shows the performance of the shark-search against that of the fish-search, for four test cases. We see that the shark-search performed between  1.5  and  3  times better than its ancestor.

Test Case fish-search
sum of info		 shark-search
sum of info		 improvement
ratio
query: "computational biology course"
seed URL: http://www.cs.technion.ac.il		 281 324 1.15
query: " Global survey Mars exploration sojourner"
seed URL: http://www.cnn.com		 71 189 2.66
query: "breast feeding nutrition"
seed URL: http://www.parentsplace.com		 316 645 2.04
query: "semi-definite programming and Cholesky decomposition"
seed URL: http://www.mcs.anl.gov/otc/Guide/		 34 126 3.71
Table 1: Performance results in the sum-of-information metric

Note that these test cases having been designed experimentally (rather than formally over a statistically significant sample, and using testing guidelines procedure), they should be considered as a positive indicator of the effectiveness of the algorithm rather than as formal results.

We used three variations of the Mapuccino engine, (all using the same similarity engine) to generate the maps below. The seed in all examples was the CNN home page (depicted by a small house icon), using "San Francisco 49ers" as search query for directing the crawling process. Relevant pages are highlighted in blue (irrelevant ones in white). The darker the shade of blue, the more relevant the document is. The same amount of time was affected in all three cases.

Case 1: fish-search algorithm (with similarity engine)
The map in  Figure 4 shows that 3 directions were identified by the fish-search algorithm from the CNN home page, and one got explored somewhat deeper in the given time span. The total of relevant pages thus identified amounts to 7.
Figure 4: Tailored map (fish-search algorithm)

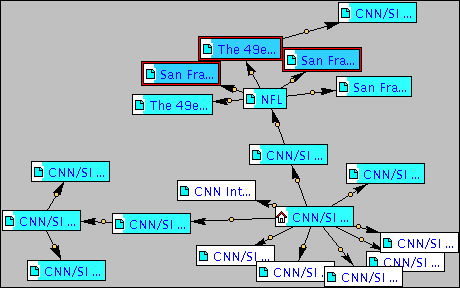

Figure 5: Tailored map (partial shark-search algorithm)
 		Case 2: shark-search algorithm without context analysis
As seen in  Figure 5, the same directions were explored at the first level, but thanks to the queue prioritization, the server did not waste time exploring irrelevant pages identified at the first level in the previous case, and could go deeper in two relevant directions, identifying more relevant pages as indicated by the darker shade of blue. A total of 14 relevant documents was found, and 3 of them were particularly relevant (no document with this degree of relevance was found in the previous case).
Case 3: complete shark-search algorithm
The tendency shown in the previous example gets more pronounced. The first-level descendant that seemed to induce the best direction (after the fact) is immediately identified as a highly relevant page (darker blue), see Figure 6, and more sub-directions are identified in the same time span. The number of relevant pages found increased to 17, 4 of them being highly relevant.
Figure 6: Tailored map (complete shark-search algorithm)

6. Conclusion

In this paper, we have proposed an improved version of one of the first dynamic search algorithms for the Web, the "fish search" algorithm. Our more aggressive shark-search algorithm overcomes some limitations of the fish search by analyzing the relevance of documents more precisely and, more importantly making a finer estimate of the relevance of neighboring pages before they are actually fetched and analyzed. These improvements enable to save precious communication time, by fetching first documents that are most probably relevant or leading to relevant documents, and not wasting time on garden paths. We implemented both the fish- and the shark-search algorithms in a dynamic tailorable site mapping tool,  Mapuccino, and experimentally verified that significant improvements were achieved in terms of the total of relevant information discovered in the same small amount of time. We believe that the shark-search algorithm can thus advantageously replace its ancestor in applications that require dynamic and precise searches in limited time spans.

Acknowledgments

We are grateful to David Notkin for his valuable comments and suggestions in the writing of this paper. This research was done while Dan Pelleg was an extern student at the IBM Haifa Research Laboratory.

References

[De Bra et al. 94]
P. De Bra, G-J Houben, Y. Kornatzky, and R. Post, "Information Retrieval in Distributed Hypertexts" in the  Proceedings of RIAO'94, Intelligent Multimedia, Information Retrieval Systems and Management, New York, NY, 1994.
[Iwazume et al.]
M. Iwazume, K Shirakami, K. Hatadani, H. Takeda and T. Nishida,  "IICA: An Ontology-based Internet Navigation System". In the AAAI-96 Workshop on Internet Based Information Systems, 1996.
[Maarek et al. 97]
Y. S. Maarek, M. Jacovi, M. Shtalhaim, S. Ur, D. Zernik, and I. Z. Ben Shaul, "WebCutter: A system for dynamic and tailorable site mapping", In the Proceedings of the Sixth International World Wide Web Conference, Santa-Clara, April 1997.
[Marchiori 97]
M. Marchiori, "The quest for correct information on the Web: Hyper search engines". In the  Proceedings of the Sixth International World Wide Web Conference, Santa-Clara, April 1997.
[Manber et al. 97]
U. Manber, M. Smith and B. Gopal, "WebGlimpse: Combining Browsing and Searching". In the  Proceedings of the Usenix Technical Conference, Jan 6-10 1997.  WebGlimpse paper and  WebGlimpse home page
[Salton & McGill 83]
G. Salton and M.J. McGill, "Introduction to Modern Information Retrieval". Computer Series. McGraw-Hill, New York, 1983.
[Salton 89]
G. Salton,  "Automatic text processing, the transformation, analysis and retrieval of information by computer". Addison-Wesley, Reading, MA, 1989.

URL References

Mapuccino
 http://www.ibm.com/java/mapuccino
On-Line Proceedings of the WWW6 Conference
 http://proceedings.www6conf.org
WebGlimpse Homepage
 http://glimpse.cs.arizona.edu/webglimpse/index.html
WebGlimpse Paper
 ftp://ftp.cs.arizona.edu/people/udi/webglimpse.ps.Z
